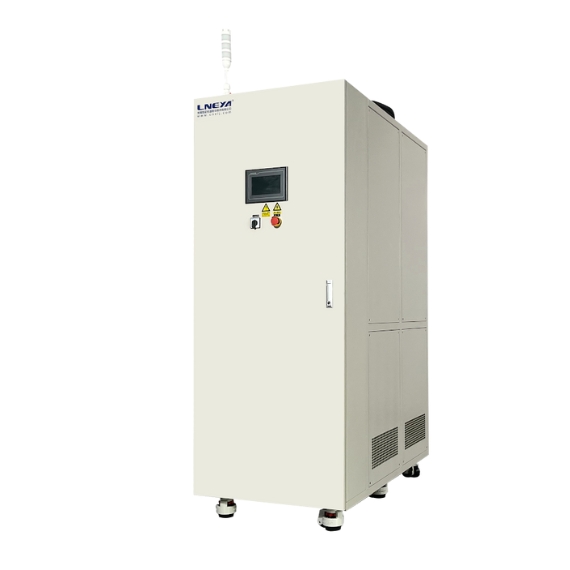

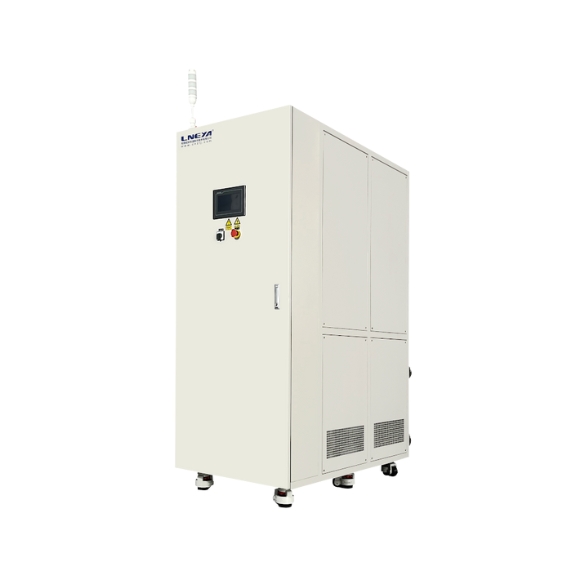

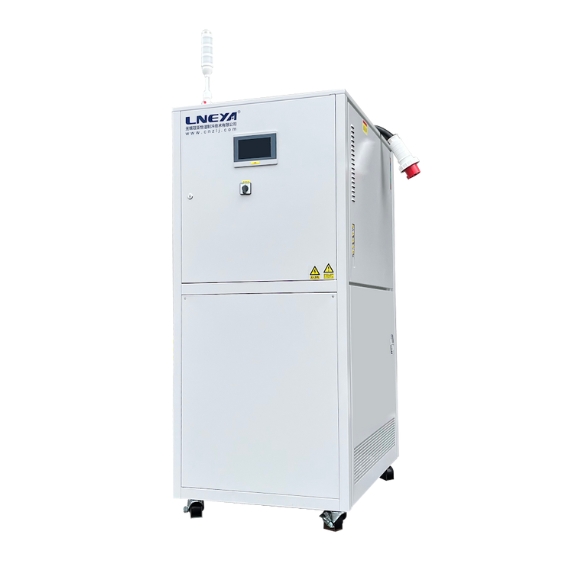

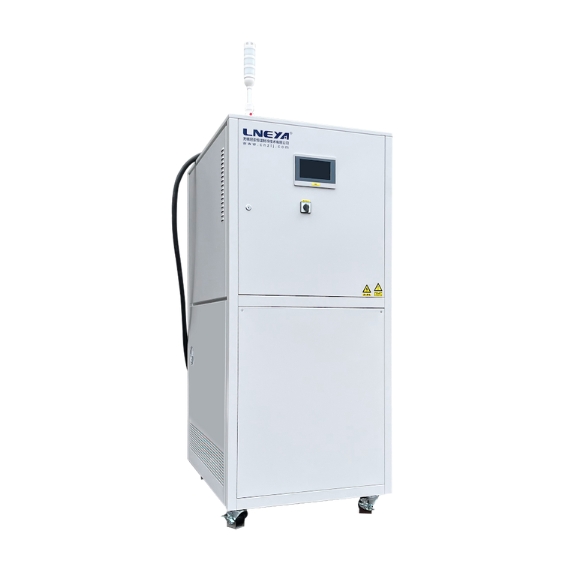

EV Battery Testing Chiller – 6 Group Controls
Temperature control in the testing process of new energy vehicle components.
The equipment can meet the requirements of direct cooling or direct heating for battery pack and electric vehicle testing. The device is mainly used for testing the cooling and heating capacity of the batteries. It can adopt a variable frequency compressor with adjustable output; variable frequency fan with adjustable speed and heat dissipation capacity. Combined with high precision temperature, pressure and flow sensors. It can also calculate heat transfer capacity in real time and automatically recover and add refrigerant. Can accommodate battery packs of different sizes.
The testing object is connected to a testing adapter; component cooling and heating test is conducted by ethylene glycol plus water mixture.
The test unit needs to go through a specific temperature range curve and record the temperature change. The temperature usually ranges from -40degC to 100degC (expandable up to 150degC)
Overview:
- Working Temperature Range: -40degC to +150degC
- Temperature/pressure/flow can be independently controlled
- The temperature of antifreeze ranges from -40degC to +100degC (expandable to +150degC) with a very steep temperature gradient.
- Different application related models like – One machine for two groups control; one machine for six groups control; Variable Frequency vortex compressor.
- Variable frequency series models: Can adopt a variable frequency vortex compressor, the operating speed is automatically adjusted according to actual needs, providing the required cooling capacity. Compared with traditional fixed frequency compressors, it significantly reduces energy consumption and improves energy efficiency performance.
- Constant power output function for both hot and cold.
- LNEYA PLC control with 7-inch colour large screen and comprehensive multifunctional image display of important data information.
- Relevant operational status data can be continuously monitored and visualized on the screen. Can independently control one to multiple flow channels where each group can be independently set.
| One machine for six groups control -20°C to +100°C (Temperature six groups are consistent, pressure/flow rate is independently controlled) |
||||
|---|---|---|---|---|
| Model | KRY-2A25W/6S | KRY-2A38W/6S | KRY-2A60W/6S | |
| Temp Range | -20°C to +100°C | |||
| Temp control accuracy | ±0.3°C | ±0.3°C | ±0.3°C | |
| Temp feedback | Pt100 | Pt100 | Pt100 | |
| Temp display | 0.01k | 0.01k | 0.01k | |
| Flow control/Group | 1 – 25 L/min | 1 – 25 L/min | 1 – 40 L/min | |
| Flow control accuracy/Group | ±0.2L/min | ±0.2L/min | ±0.2L/min | |
| Number of fluid output groups | 6 groups | 6 groups | 6 groups | |
| Pressure control/group | 0.2bar – 2.5bar | 0.2bar – 2.5bar | 0.2bar – 2.5bar | |
| Flow pressure description | The unit can control the flow individually or separately. Need to control different solutions at the same time (customized) | |||
| Heating power | 15kW | 25kW | 38kW | |
| Cooling capacity (100°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (20°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (0°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (-15°C) | 10kW | 15kW | 24kW | |
| Compressor | Emerson Copeland | Emerson Copeland | Emerson Copeland | |
| Throttle type | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | |
| Oil separator | Emerson/GUANYA | Emerson/GUANYA | Emerson/GUANYA | |
| Dry filter | Danfoss | Danfoss | Danfoss | |
| Evaporator | Plate heat exchanger | Plate heat exchanger | Plate heat exchanger | |
| Circulation pump | Magnetic driven pump | Magnetic driven pump | Magnetic driven pump | |
| Flow pressure | The pump speed is regulated by frequency converter | |||
| Input display | 7-inch color touch screen \ PLC controller | |||
| Communication | Modbus RTU protocol RS485 interface, optional CAN communication bus, Ethernet interface TCP/IP protocol | |||
| Safety protection | With self-diagnosis function; Refrigerator overload protection; High pressure switch, overload relay, thermal protection device, high temperature protection, sensor fault protection and other safety functions | |||
| Closed circulation system | The whole system is a fully closed system, there will be no oil mist at high temperature, the system in operation will not because of high temperature pressure rise, low temperature automatically add heat conduction medium | |||
| Refrigerant | R404A/R507C | |||
| Connection size | There are six groups of inlet and outlet, ZG3/4 | |||
| Water-cooled at 20°C | 8000L/H DN40 | 12000L/H DN50 | 20000L/H DN50 | |
| Condenser (W) | Shenshi tube type heat exchanger | |||
| Condenser (A) | Optional air-cooled equipment, upward wind, the equipment size will increase | |||
| Power 380V50HZ | 36kW max | 51kW max | 75kW max | |
| Dimension (cm) | 200*145*205 | 200*145*205 | 200*145*205 | |
| Weight | 900kg | 1100kg | 1750kg | |
| Optional | 220V 60HZ Three phase 400V 50HZ Three phase 440V 60HZ Three phase Extend to -40 to +135°C | |||
| Optional | The size external circulation pipe line is DN15 or DN20, do not throttle, which will increase the circulation pump load, pipe need to be insulated, and adopt rubber and plastic insulation pipe which can afford high temp, liquid low level protection | |||
| Optional | When the temp. is lower than the normal temp., the refrigeration system uses the cooling PID to adjust the cooling capacity, and does not adopt the heating countermeasure mode to achieve energy saving purposes. | |||
| Case material | Cold rolled steel powder coating (standard color 7035) | |||
| One machine for six groups control -40°C to +100°C (Temperature six groups are consistent, pressure/flow rate is independently controlled) |
||||
|---|---|---|---|---|
| Model | KRY-4A25W/6S | KRY-4A38W/6S | KRY-4A60W/6S | |
| Temp Range | -40°C to +100°C | |||
| Temp control accuracy | ±0.3°C | ±0.3°C | ±0.3°C | |
| Temp feedback | Pt100 | Pt100 | Pt100 | |
| Temp display | 0.01k | 0.01k | 0.01k | |
| Flow control/Group | 1 – 25 L/min | 1 – 25 L/min | 1 – 40 L/min | |
| Flow control accuracy/Group | ±0.2L/min | ±0.2L/min | ±0.2L/min | |
| Number of fluid output groups | 6 groups | 6 groups | 6 groups | |
| Pressure control/group | 0.2bar – 2.5bar | 0.2bar – 2.5bar | 0.2bar – 2.5bar | |
| Flow description | When the temperature control is lower than -30°C, the flow rate is controlled within 80% of the maximum value | |||
| Flow pressure description | The unit can control the flow individually or separately. Need to control different solutions at the same time (customized) | |||
| Heating power | 1kW | 25kW | 38kW | |
| Cooling capacity (100°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (20°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (0°C) | 25kW | 38kW | 60kW | |
| Cooling capacity (-20°C) | 14kW | 22kW | 35kW | |
| Cooling capacity (-35°C) | 5kW | 8kW | 13kW | |
| Compressor | Emerson Copeland | Emerson Copeland | Emerson Copeland | |
| Throttle type | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | |
| Oil separator | Emerson/GUANYA | Emerson/GUANYA | Emerson/GUANYA | |
| Dry filter | Danfoss | Danfoss | Danfoss | |
| Evaporator | Plate heat exchanger | Plate heat exchanger | Plate heat exchanger | |
| Circulation pump | Magnetic driven pump | Magnetic driven pump | Magnetic driven pump | |
| Flow regulation mode | The pump speed is regulated by frequency converter | |||
| Flow pressure | Electromagnetic flowmeter, pressure value 4-20mA | |||
| Input display | 7-inch color touch screen PLC controller | |||
| Communication | Modbus RTU protocol RS485 interface, optional CAN communication bus, Ethernet interface TCP/IP protocol | |||
| Safety protection | With self-diagnosis function; Refrigerator overload protection; High pressure switch, overload relay, thermal protection device, high temperature protection, sensor fault protection and other safety functions | |||
| Closed circulation system | The whole system is a fully closed system, there will be no oil mist at high temperature, the system in operation will not because of high temperature pressure rise, low temperature automatically add heat conduction medium | |||
| Refrigerant | R404A/R507C/R125/N40 All four refrigerants are available | |||
| Connection size | There are six groups of inlet and outlet, ZG3/4 | |||
| Water-cooled at 20°C | 8000L/H DN40 | 12000L/H DN50 | 18000L/H DN65 | |
| Condenser (W) | Shenshi tube type heat exchanger | |||
| Power 380V50HZ | 38kW max | 55kW max | 82kW max | |
| Dimension (cm) | 200*145*205 | 200*145*205 | 200*145*205 | |
| Weight | 900kg | 1200kg | 1950kg | |
| Optional | 220V 60HZ Three phase 400V 50HZ Three phase 440V 60HZ Three phase Extend to -40 to +135°C | |||
| Optional | The size external circulation pipe line is DN15 or DN20, do not throttle, which will increase the circulation pump load, pipe need to be insulated, and adopt rubber and plastic insulation pipe which can afford high temp, liquid low level protection | |||
| Case material | Cold rolled sheet (REL7035) | |||
